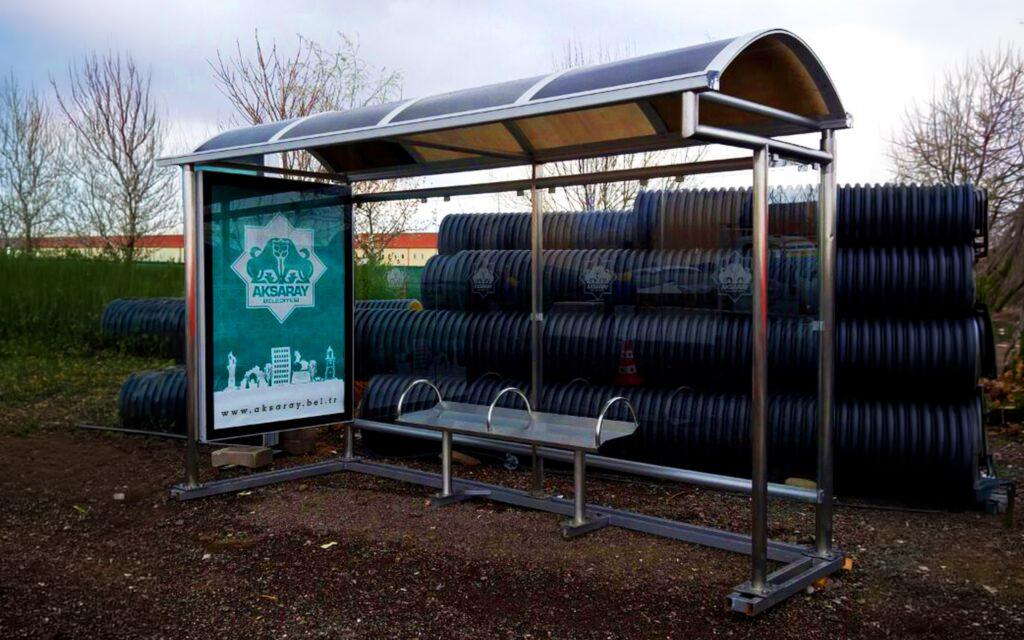

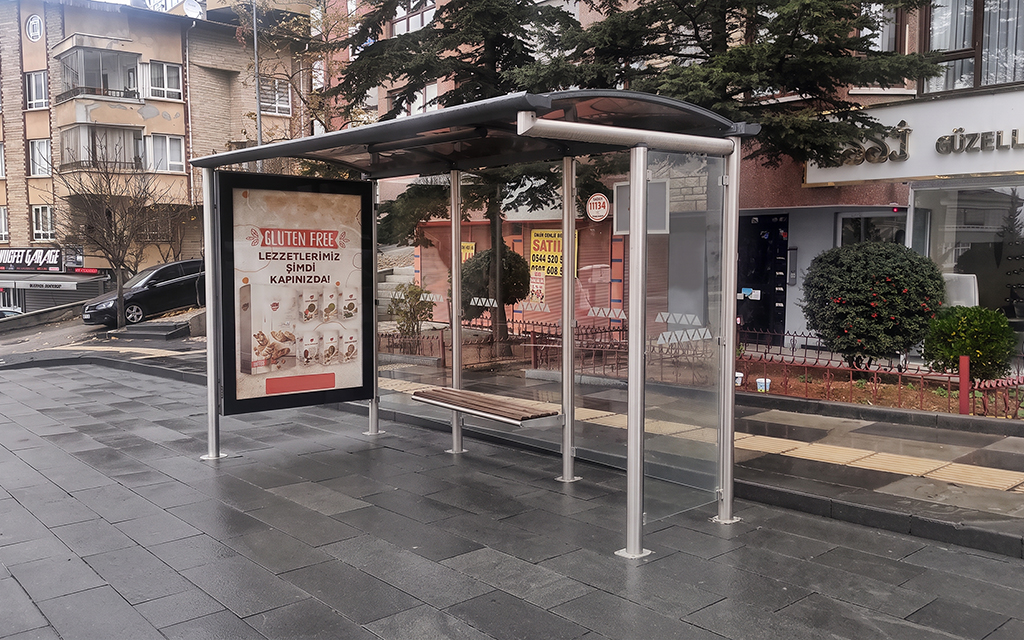

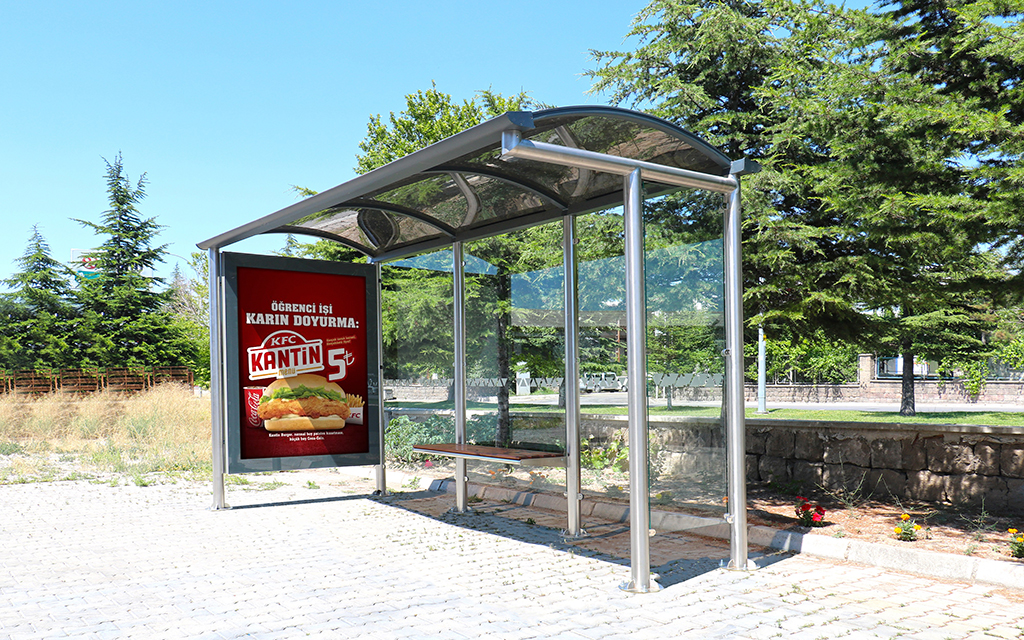

Stainless Steel Bus Shelter
TECHNICAL SPECIFICATIONS
• 1450×3700 mm; height: 2350 mm
• Roof cover: 3 mm solid polycarbonate
• Extruded aluminium profiles
• Rear panel: 8 mm tempered glass
• CLP/MUPI
• Ø 89x2mm grade 304 stainless steel structure
• Grade 304 stainless steel seating
• LED fluorescent lighting
• USB charger
MUPI / CLP
• Hot-dip galvanized internal structure
• Aluminium frame system
• 5 mm tempered glass
• Concealed locking system
• Frame with gas springs
• LED fluorescent lighting
OPTIONS
• LED lighting
• Scroller system for CLP/MUPI
• LED information board
• Any RAL colour
*Custom design available.

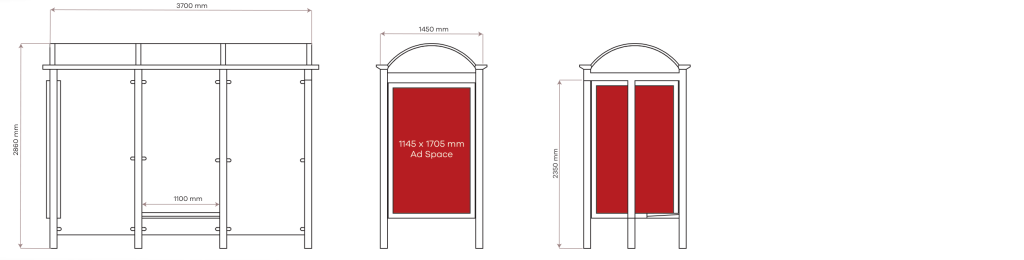

TECHNICAL DRAWING
