Shelter LED Totem
TECHNICAL SPECIFICATIONS
• 1790×4235 mm; height: 2575 mm
• Roof cover: 4+4 mm laminated glass
• Rear panel: 10 mm tempered glass
• Backlit aluminium CLP/MUPI
• Galvanized and powder-coated seating
• Galvanized and powder-coated structure
• LED fluorescent lighting
• USB charger
MUPI / CLP
• Hot-dip galvanized internal structure
• Aluminium frame system
• 5 mm tempered glass
• Concealed locking system
• Frame with gas springs
• P 2.5 outdoor LED screen
OPTIONS
• Stainless steel structure
• LED lighting
• Scroller system for CLP/MUPI
• LED information board
• Any RAL colour
• Different screen resolutions
*Custom design available.

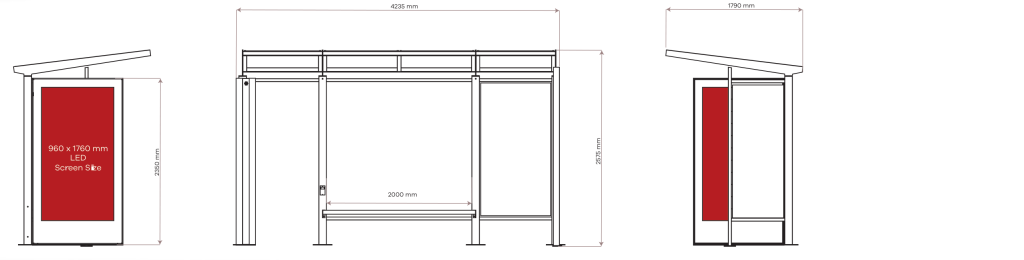

TECHNICAL DRAWING
