Matrix Bus Shelter

TECHNICAL SPECIFICATIONS

• 1660×4520 mm; height: 2500 mm
• Roof cover: 4+4 mm laminated glass
• Backlit aluminium CLP/MUPI
• Rear panel: 8 mm tempered glass
• Galvanized and powder-coated seating
• Galvanized and powder-coated structure
• Aesthetic side panel
• LED fluorescent lighting
• USB charger

MUPI / CLP

• Hot-dip galvanized internal structure
• Aluminium frame system
• 5 mm tempered glass
• Concealed locking system
• Frame with gas springs
• LED fluorescent lighting

OPTIONS

• Stainless steel structure
• Backlit advertising wall panel
• LED lighting
• Scroller system for CLP/MUPI
• LED information board
• Any RAL colour
• Different screen resolutions

*Custom design available.

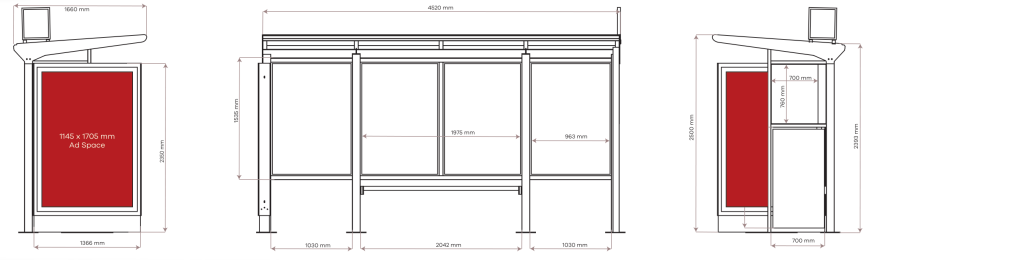

TECHNICAL DRAWING

Matrix Bus Shelter — technical drawing

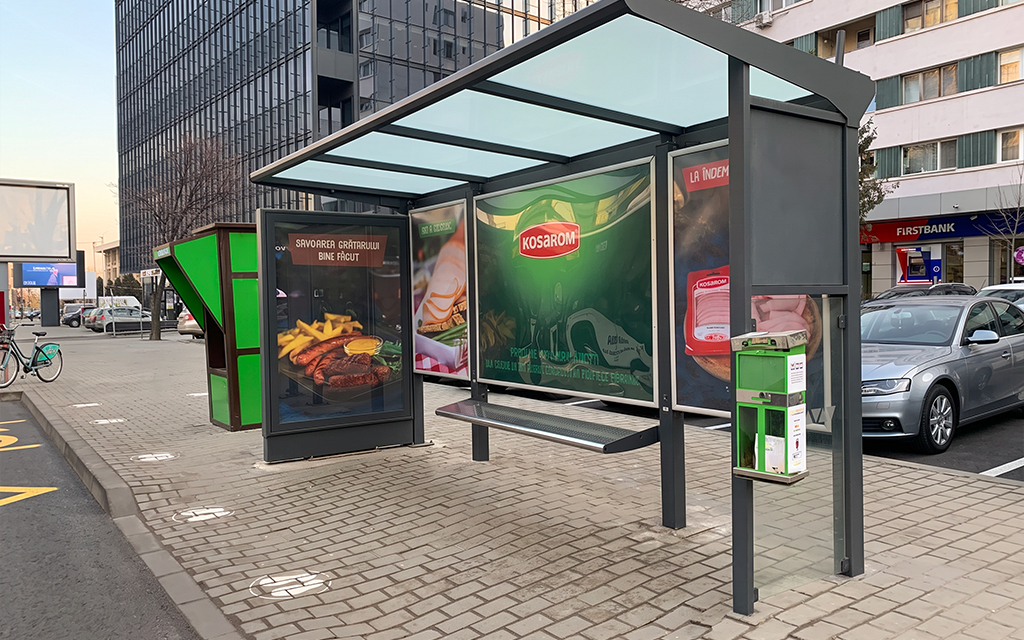

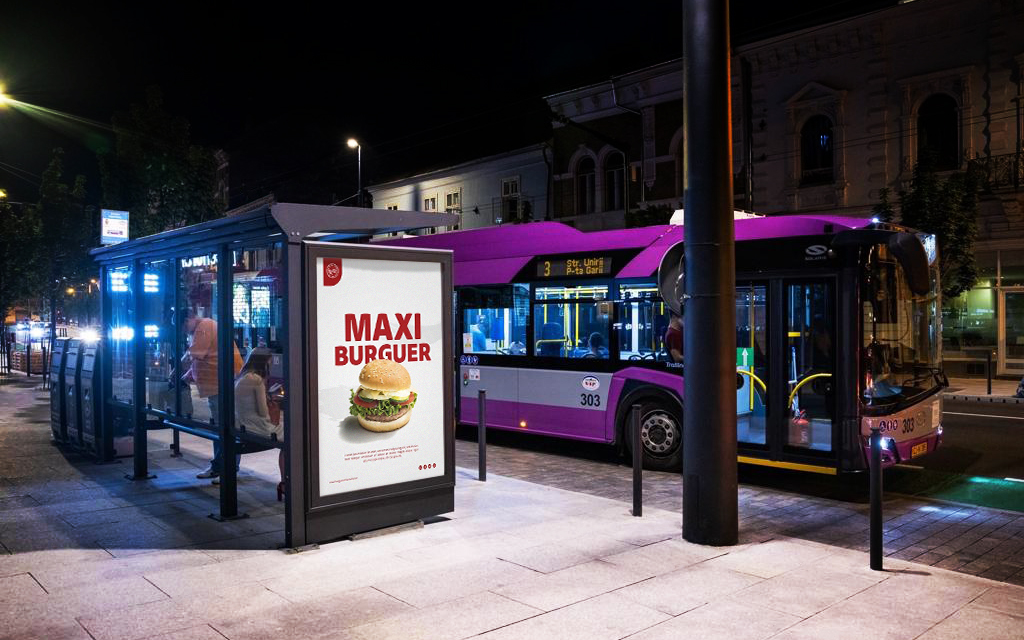

Matrix Bus Shelter GALLERY
