Mach Bus Shelter
TECHNICAL SPECIFICATIONS
• 1620×3500 mm; height: 2320 mm
• Roof cover: 4 mm solid polycarbonate
• Perforated and galvanized metal sheet
• Backlit aluminium CLP/MUPI
• Rear panel: 8 mm tempered glass
• Galvanized and powder-coated seating
• Galvanized and powder-coated structure
• Aesthetic side panel
• LED fluorescent lighting
• USB charger
MUPI / CLP
• Hot-dip galvanized internal structure
• Aluminium frame system
• 5 mm tempered glass
• Concealed locking system
• Frame with gas springs
• LED fluorescent lighting
OPTIONS
• Stainless steel structure
• LED lighting
• Scroller system for CLP/MUPI
• LED information board
• Any RAL colour
*Custom design available.

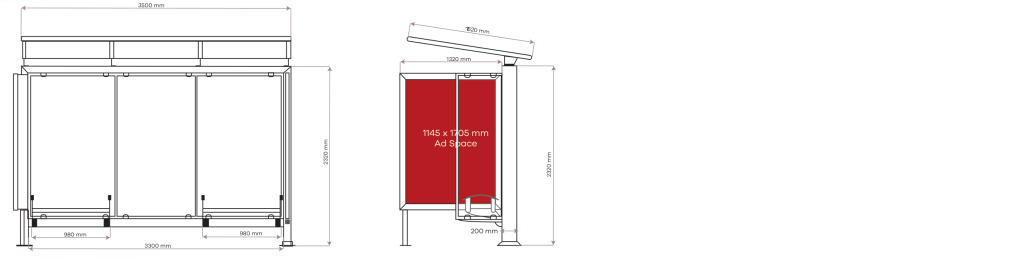

TECHNICAL DRAWING
